Description

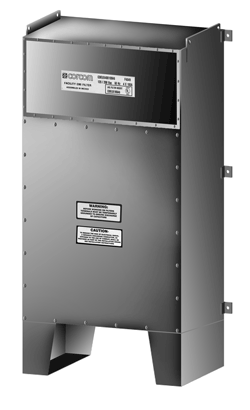

Filter Cabinet
- Modified NEMA I, constructed of not less than #14 gauge CRS with galvanized bulkhead
- Blue epoxy finish to all non-conductive surfaces
- R.F. Radiation of the shielded (load) compartment greater than 100dB from 14kHz to 10GHz
- Front cover access, dual cover design
- Lifting hooks and mounting tabs
- Legs for floor mount available
Individual Filters
- Sealed components with welded and/or soldered seams
- Constructed of not less than # 16 gauge steel with corrosion resistant plating
- Bleeder resistor to eliminate shock hazard provided
- HEMP surge arrestors provided upon request †
